AC/DC converters

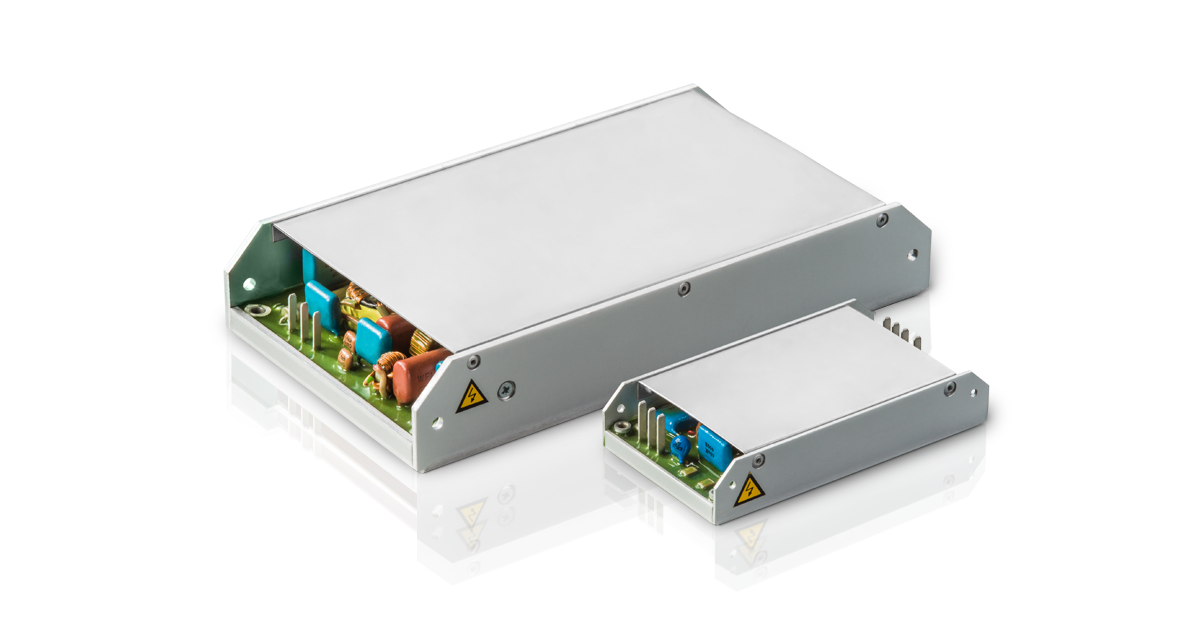

MAA / KWant Series (AC/DC converters)
Single-channel low-profile AC/DC converters. These converters are distinguished by the ability to operate in extreme conditions (-50°C...+85°C, increased humidity, extensive vibrations).
KWant Series: - MIL-STD 461E compliant, without additional external components, - MIL-STD 810G compliant, - Active PFC over 250W.
KWant-L Series: - MIL-STD 461E compliant without additional external components, - MIL-STD 810G compliant, - Without PFC.
MAA Series: - MIL-STD 461E compliant with external filter, - MIL-STD 810G compliant, - Without PFC.
KWant Series: - MIL-STD 461E compliant, without additional external components, - MIL-STD 810G compliant, - Active PFC over 250W.
KWant-L Series: - MIL-STD 461E compliant without additional external components, - MIL-STD 810G compliant, - Without PFC.
MAA Series: - MIL-STD 461E compliant with external filter, - MIL-STD 810G compliant, - Without PFC.
Can be used in:
- Oil-and-gas industry
- Security
- Mining industry
- Telecommunication
- Special application
_seria.png)
Series documentation
Models
| Title | Datasheet | Power | Dimensions | Input range | Output voltage | Efficiency |
|---|---|---|---|---|---|---|
| KWant30 |
30 W |
51x101x20 mm |
220(100...264) VAC |
5 VDC 12 VDC 15 VDC 24 VDC 28 VDC |
91% | |
| KWant75 |
75 W |
61x111x25 mm |
220(100...264) VAC |
5 VDC 12 VDC 15 VDC 24 VDC 28 VDC |
88-93% | |
| KWant150 |
150 W |
84x134x33 mm |
115(81...138) VAC 220(100...264) VAC 220(187...242) VAC |
5 VDC 5 VDC 5 VDC Under development 9 VDC Under development 12 VDC Under development 15 VDC 15 VDC Under development 24 VDC 28 VDC |
82-89% | |
|
KWant250 |
250 W |
84x134x33 mm |
220(100...264) VAC |
5 VDC Under Development 12 VDC Under Development 15 VDC Under Development 24 VDC 28 VDC |
78-80% | |
| KWant400 |
400 W |
93x175x35 mm |
220(100...264) VAC 220(187...242) VAC |
15 VDC 24 VDC Under development 24 VDC 28 VDC Under development 28 VDC 48 VDC |
82-85% | |
| KWant500 |
500 W |
93x175x35 mm |
220(100...264) VAC |
12 VDC Under development 24 VDC Under development 28 VDC |
95% | |
| KWant500 3ph |
500 W |
93x175x35 mm |
220(187...253) VAC 380(323...437) VAC |
24 VDC 28 VDC |
87% | |
| KWant800 |
800 W |
117x211x41 mm |
220(100...264) VAC 220(187...242) VAC |
24 VDC 28 VDC |
88% | |
| KWant1000 |
1000 W |
117x211x41 mm |
220(100...264) VAC 220(187...242) VAC |
24 VDC 28 VDC |
88% | |
| KWant-L1200 |
1200 W |
175x285x40 mm |
220(187...242) VAC |
28 VDC |
94% | |
| KWant1500 |
1500 W |
140x250x41 mm |
220(187...242) VAC |
24 VDC 28 VDC |
92% | |
| KWant1500 3ph |
1500 W |
140x250x41 mm |
220(187...253) VAC 380(323...437) VAC |
24 VDC Under development 28 VDC Under development 48 VDC Under development |
89-90% | |
| KWant2000 |
2000 W 3000 W |
140x250x50 mm |
220(187...242) VAC |
28 VDC Under development |
91% | |
| KWant2000 3ph |
2000 W |
140x250x50 mm |
380(323...437) VAC |
24 VDC 28 VDC |
91% | |
| KWant3000 3ph |
3000 W |
174x284x54 mm |
380(323...437) VAC |
28 VDC 60 VDC |
93% |
Accessories
Heatsinks for MAA units
Ribbed aluminum heatsinks of RO series.
