MAA Series

MAA500 3ph

Dimensions
93x175x35 mm
Power
500 W
Input voltage
220(187...253) VAC; 380(323...437) VAC
Output voltage
5 VDC
9 VDC
12 VDC
15 VDC
24 VDC
28 VDC
12; 12 VDC
15; 15 VDC
24; 24 VDC
28; 28 VDC
Efficiency
78-85%
Warranty
2 years
Operation temperature
-40...+85 °C
-50...+85 °C

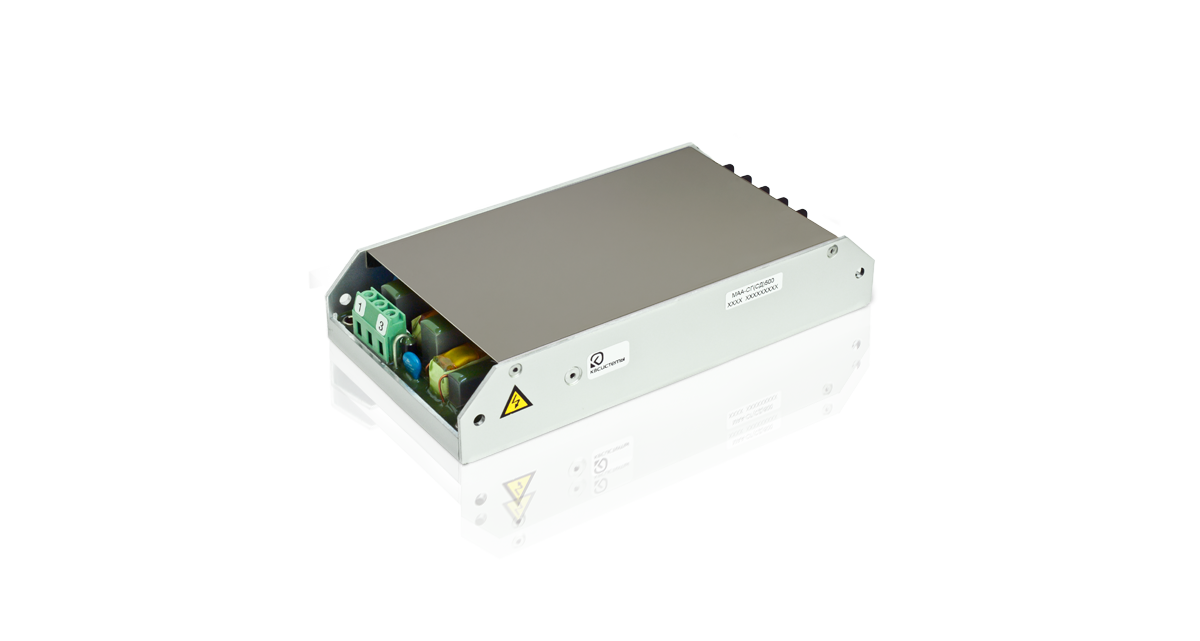

MAA500 power supply units for industrial and special-purpose equipment.  Having compact size (175 х 93 х 35 mm) the maximum power output of these units goes up to 500 W. They are able to operate under a wide case operating temperature range (-50°C...+85°C).

Depending on the version units can have one or two isolated output channels, remote on/off, full range of protections (over-current, short-circuit, overheating), can be used in parallel and series mode. To compensate for voltage drop in conductors of the load there is also a service function of external feedback that allows you to accurately maintain the voltage on the load remote from the converter.

The converters of this series employ active alignment of output currents in several units operating in parallel mode for the common load.  Polymer sealing potting ensures reliable protection against external factors and excludes damage to the transformer caused by vibration or contamination by dirt, moisture or salt mist.  Enclosure of the units has u-shaped aluminum base.  The PCB of the unit is protected from mechanical and climatic load by a thin-walled steel cover.

MAA500 3ph model range

Show all
Title Power Input voltage Output Dimensions Work. temp.
MAA500-1P05SGN 500 220(187...253) VAC 5 VDC 93х175х35 mm -40...+85 °C
MAA500-1P09SGN 500 220(187...253) VAC 9 VDC 93х175х35 mm -40...+85 °C
MAA500-1P12SGN 500 220(187...253) VAC 12 VDC 93х175х35 mm -40...+85 °C
MAA500-1P15SGN 500 220(187...253) VAC 15 VDC 93х175х35 mm -40...+85 °C
MAA500-1P24SGN 500 220(187...253) VAC 24 VDC 93х175х35 mm -40...+85 °C
MAA500-1P28SGN 500 220(187...253) VAC 28 VDC 93х175х35 mm -40...+85 °C
MAA500-1T05SGN 500 380(323...437) VAC 5 VDC 93х175х35 mm -40...+85 °C
MAA500-1T09SGN 500 380(323...437) VAC 9 VDC 93х175х35 mm -40...+85 °C
MAA500-1T12SGN 500 380(323...437) VAC 12 VDC 93х175х35 mm -40...+85 °C
MAA500-1T15SGN 500 380(323...437) VAC 15 VDC 93х175х35 mm -40...+85 °C
MAA500-1T24SGN 500 380(323...437) VAC 24 VDC 93х175х35 mm -40...+85 °C
MAA500-1T28SGN 500 380(323...437) VAC 28 VDC 93х175х35 mm -40...+85 °C
MAA500-1P05SDN 500 220(187...253) VAC 5 VDC 93х175х35 mm -40...+85 °C
MAA500-1P09SDN 500 220(187...253) VAC 9 VDC 93х175х35 mm -40...+85 °C
MAA500-1P12SDN 500 220(187...253) VAC 12 VDC 93х175х35 mm -40...+85 °C
MAA500-1P15SDN 500 220(187...253) VAC 15 VDC 93х175х35 mm -40...+85 °C
MAA500-1P24SDN 500 220(187...253) VAC 24 VDC 93х175х35 mm -40...+85 °C
MAA500-1P28SDN 500 220(187...253) VAC 28 VDC 93х175х35 mm -40...+85 °C
MAA500-1T05SDN 500 380(323...437) VAC 5 VDC 93х175х35 mm -40...+85 °C
MAA500-1T09SDN 500 380(323...437) VAC 9 VDC 93х175х35 mm -40...+85 °C
MAA500-1T12SDN 500 380(323...437) VAC 12 VDC 93х175х35 mm -40...+85 °C
MAA500-1T15SDN 500 380(323...437) VAC 15 VDC 93х175х35 mm -40...+85 °C
MAA500-1T24SDN 500 380(323...437) VAC 24 VDC 93х175х35 mm -40...+85 °C
MAA500-1T28SDN 500 380(323...437) VAC 28 VDC 93х175х35 mm -40...+85 °C
MAA500-1P05SGP 500 220(187...253) VAC 5 VDC 93х175х35 mm -50...+85 °C
MAA500-1P09SGP 500 220(187...253) VAC 9 VDC 93х175х35 mm -50...+85 °C
MAA500-1P12SGP 500 220(187...253) VAC 12 VDC 93х175х35 mm -50...+85 °C
MAA500-1P15SGP 500 220(187...253) VAC 15 VDC 93х175х35 mm -50...+85 °C
MAA500-1P24SGP 500 220(187...253) VAC 24 VDC 93х175х35 mm -50...+85 °C
MAA500-1P28SGP 500 220(187...253) VAC 28 VDC 93х175х35 mm -50...+85 °C
MAA500-1T05SGP 500 380(323...437) VAC 5 VDC 93х175х35 mm -50...+85 °C
MAA500-1T09SGP 500 380(323...437) VAC 9 VDC 93х175х35 mm -50...+85 °C
MAA500-1T12SGP 500 380(323...437) VAC 12 VDC 93х175х35 mm -50...+85 °C
MAA500-1T15SGP 500 380(323...437) VAC 15 VDC 93х175х35 mm -50...+85 °C
MAA500-1T24SGP 500 380(323...437) VAC 24 VDC 93х175х35 mm -50...+85 °C
MAA500-1T28SGP 500 380(323...437) VAC 28 VDC 93х175х35 mm -50...+85 °C
MAA500-1P05SDP 500 220(187...253) VAC 5 VDC 93х175х35 mm -50...+85 °C
MAA500-1P09SDP 500 220(187...253) VAC 9 VDC 93х175х35 mm -50...+85 °C
MAA500-1P12SDP 500 220(187...253) VAC 12 VDC 93х175х35 mm -50...+85 °C
MAA500-1P15SDP 500 220(187...253) VAC 15 VDC 93х175х35 mm -50...+85 °C
MAA500-1P24SDP 500 220(187...253) VAC 24 VDC 93х175х35 mm -50...+85 °C
MAA500-1P28SDP 500 220(187...253) VAC 28 VDC 93х175х35 mm -50...+85 °C
MAA500-1T05SDP 500 380(323...437) VAC 5 VDC 93х175х35 mm -50...+85 °C
MAA500-1T09SDP 500 380(323...437) VAC 9 VDC 93х175х35 mm -50...+85 °C
MAA500-1T12SDP 500 380(323...437) VAC 12 VDC 93х175х35 mm -50...+85 °C
MAA500-1T15SDP 500 380(323...437) VAC 15 VDC 93х175х35 mm -50...+85 °C
MAA500-1T24SDP 500 380(323...437) VAC 24 VDC 93х175х35 mm -50...+85 °C
MAA500-1T28SDP 500 380(323...437) VAC 28 VDC 93х175х35 mm -50...+85 °C
MAA500-2P1212SGN 500 220(187...253) VAC 12 VDC;12 VDC 93х175х35 mm -40...+85 °C
MAA500-2P1515SGN 500 220(187...253) VAC 15 VDC;15 VDC 93х175х35 mm -40...+85 °C
MAA500-2P2424SGN 500 220(187...253) VAC 24 VDC;24 VDC 93х175х35 mm -40...+85 °C
MAA500-2P2828SGN 500 220(187...253) VAC 28 VDC;28 VDC 93х175х35 mm -40...+85 °C
MAA500-2T1212SGN 500 380(323...437) VAC 12 VDC;12 VDC 93х175х35 mm -40...+85 °C
MAA500-2T1515SGN 500 380(323...437) VAC 15 VDC;15 VDC 93х175х35 mm -40...+85 °C
MAA500-2T2424SGN 500 380(323...437) VAC 24 VDC;24 VDC 93х175х35 mm -40...+85 °C
MAA500-2T2828SGN 500 380(323...437) VAC 28 VDC;28 VDC 93х175х35 mm -40...+85 °C
MAA500-2P1212SDN 500 220(187...253) VAC 12 VDC;12 VDC 93х175х35 mm -40...+85 °C
MAA500-2P1515SDN 500 220(187...253) VAC 15 VDC;15 VDC 93х175х35 mm -40...+85 °C
MAA500-2P2424SDN 500 220(187...253) VAC 24 VDC;24 VDC 93х175х35 mm -40...+85 °C
MAA500-2P2828SDN 500 220(187...253) VAC 28 VDC;28 VDC 93х175х35 mm -40...+85 °C
MAA500-2T1212SDN 500 380(323...437) VAC 12 VDC;12 VDC 93х175х35 mm -40...+85 °C
MAA500-2T1515SDN 500 380(323...437) VAC 15 VDC;15 VDC 93х175х35 mm -40...+85 °C
MAA500-2T2424SDN 500 380(323...437) VAC 24 VDC;24 VDC 93х175х35 mm -40...+85 °C
MAA500-2T2828SDN 500 380(323...437) VAC 28 VDC;28 VDC 93х175х35 mm -40...+85 °C
MAA500-2P1212SGP 500 220(187...253) VAC 12 VDC;12 VDC 93х175х35 mm -50...+85 °C
MAA500-2P1515SGP 500 220(187...253) VAC 15 VDC;15 VDC 93х175х35 mm -50...+85 °C
MAA500-2P2424SGP 500 220(187...253) VAC 24 VDC;24 VDC 93х175х35 mm -50...+85 °C
MAA500-2P2828SGP 500 220(187...253) VAC 28 VDC;28 VDC 93х175х35 mm -50...+85 °C
MAA500-2T1212SGP 500 380(323...437) VAC 12 VDC;12 VDC 93х175х35 mm -50...+85 °C
MAA500-2T1515SGP 500 380(323...437) VAC 15 VDC;15 VDC 93х175х35 mm -50...+85 °C
MAA500-2T2424SGP 500 380(323...437) VAC 24 VDC;24 VDC 93х175х35 mm -50...+85 °C
MAA500-2T2828SGP 500 380(323...437) VAC 28 VDC;28 VDC 93х175х35 mm -50...+85 °C
MAA500-2P1212SDP 500 220(187...253) VAC 12 VDC;12 VDC 93х175х35 mm -50...+85 °C
MAA500-2P1515SDP 500 220(187...253) VAC 15 VDC;15 VDC 93х175х35 mm -50...+85 °C
MAA500-2P2424SDP 500 220(187...253) VAC 24 VDC;24 VDC 93х175х35 mm -50...+85 °C
MAA500-2P2828SDP 500 220(187...253) VAC 28 VDC;28 VDC 93х175х35 mm -50...+85 °C
MAA500-2T1212SDP 500 380(323...437) VAC 12 VDC;12 VDC 93х175х35 mm -50...+85 °C
MAA500-2T1515SDP 500 380(323...437) VAC 15 VDC;15 VDC 93х175х35 mm -50...+85 °C
MAA500-2T2424SDP 500 380(323...437) VAC 24 VDC;24 VDC 93х175х35 mm -50...+85 °C
MAA500-2T2828SDP 500 380(323...437) VAC 28 VDC;28 VDC 93х175х35 mm -50...+85 °C
