MAA / KWant Series
KWant150
- Dimensions
- 84x134x33 mm
- Power
- 150 W
- Input voltage
- 220(100...264) VAC; 220(187...242) VAC; 115(81...138) VAC
- Output voltage
-
5 VDC
9 VDC Under development
12 VDC Under development
15 VDC
24 VDC
28 VDC
5 VDC
15 VDC Under development
5 VDC Under development
- Efficiency
- 82-89%
- Warranty
- 2 years
- Operation temperature
-
-40...+85 °C
-50...+85 °C

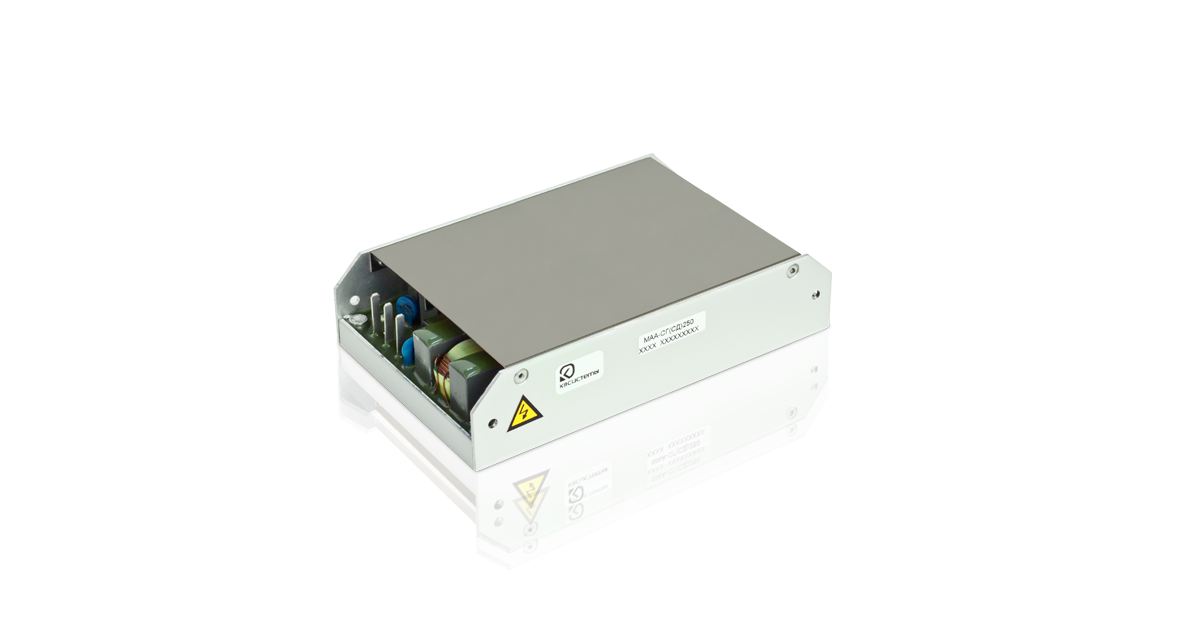

MAA150 power supply units for industrial and special-purpose equipment. Having compact size (134 х 84 х 33 mm) the maximum power output of these units goes up to 150 W. They are able to operate under a wide case operating temperature range (-50°C...+85°C).
Units have one isolated output channel, remote on/off, full range of protections (over-current, short-circuit, overheating), can be used in parallel and series mode.
Units have one isolated output channel, remote on/off, full range of protections (over-current, short-circuit, overheating), can be used in parallel and series mode.
Polymer sealing potting ensures reliable protection against external factors and excludes damage to the transformer caused by vibration or contamination by dirt, moisture or salt mist. Enclosure of the units has u-shaped aluminum base. The PCB of the unit is protected from mechanical and climatic load by a thin-walled steel cover.
Model documentation
Download allKWant150 model range
Show all
| Title | Power | Input Voltage | Output | Dimensions | Work. Temp. | Status |
|---|---|---|---|---|---|---|
| MAA150-1C05SGN | 150 | 220(100...264) VAC | 5 VDC | 84х134х33 mm | -40...+85 °C | |
| MAA150-1C09SGN | 150 | 220(100...264) VAC | 9 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1C12SGN | 150 | 220(100...264) VAC | 12 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1C15SGN | 150 | 220(100...264) VAC | 15 VDC | 84х134х33 mm | -40...+85 °C | |
| MAA150-1C24SGN | 150 | 220(100...264) VAC | 24 VDC | 84х134х33 mm | -40...+85 °C | Series |
| MAA150-1C28SGN | 150 | 220(100...264) VAC | 28 VDC | 84х134х33 mm | -40...+85 °C | Series |
| MAA150-1S05SGN | 150 | 220(187...242) VAC | 5 VDC | 84х134х33 mm | -40...+85 °C | Series |
| MAA150-1S09SGN | 150 | 220(187...242) VAC | 9 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1S12SGN | 150 | 220(187...242) VAC | 12 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1S15SGN | 150 | 220(187...242) VAC | 15 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1S24SGN | 150 | 220(187...242) VAC | 24 VDC | 84х134х33 mm | -40...+85 °C | Series |
| MAA150-1S28SGN | 150 | 220(187...242) VAC | 28 VDC | 84х134х33 mm | -40...+85 °C | Series |
| MAA150-1K05SGN | 150 | 115(81...138) VAC | 5 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1K09SGN | 150 | 115(81...138) VAC | 9 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1K12SGN | 150 | 115(81...138) VAC | 12 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1K15SGN | 150 | 115(81...138) VAC | 15 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1K24SGN | 150 | 115(81...138) VAC | 24 VDC | 84х134х33 mm | -40...+85 °C | Series |
| MAA150-1K28SGN | 150 | 115(81...138) VAC | 28 VDC | 84х134х33 mm | -40...+85 °C | Series |
| MAA150-1C05SDN | 150 | 220(100...264) VAC | 5 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1C09SDN | 150 | 220(100...264) VAC | 9 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1C12SDN | 150 | 220(100...264) VAC | 12 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1C15SDN | 150 | 220(100...264) VAC | 15 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1C24SDN | 150 | 220(100...264) VAC | 24 VDC | 84х134х33 mm | -40...+85 °C | Series |
| MAA150-1C28SDN | 150 | 220(100...264) VAC | 28 VDC | 84х134х33 mm | -40...+85 °C | Series |
| MAA150-1S05SDN | 150 | 220(187...242) VAC | 5 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1S09SDN | 150 | 220(187...242) VAC | 9 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1S12SDN | 150 | 220(187...242) VAC | 12 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1S15SDN | 150 | 220(187...242) VAC | 15 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1S24SDN | 150 | 220(187...242) VAC | 24 VDC | 84х134х33 mm | -40...+85 °C | Series |
| MAA150-1S28SDN | 150 | 220(187...242) VAC | 28 VDC | 84х134х33 mm | -40...+85 °C | Series |
| MAA150-1K05SDN | 150 | 115(81...138) VAC | 5 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1K09SDN | 150 | 115(81...138) VAC | 9 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1K12SDN | 150 | 115(81...138) VAC | 12 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1K15SDN | 150 | 115(81...138) VAC | 15 VDC | 84х134х33 mm | -40...+85 °C | Under development |
| MAA150-1K24SDN | 150 | 115(81...138) VAC | 24 VDC | 84х134х33 mm | -40...+85 °C | Series |
| MAA150-1K28SDN | 150 | 115(81...138) VAC | 28 VDC | 84х134х33 mm | -40...+85 °C | Series |
| MAA150-1C05SGP | 150 | 220(100...264) VAC | 5 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1C09SGP | 150 | 220(100...264) VAC | 9 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1C12SGP | 150 | 220(100...264) VAC | 12 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1C15SGP | 150 | 220(100...264) VAC | 15 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1C24SGP | 150 | 220(100...264) VAC | 24 VDC | 84х134х33 mm | -50...+85 °C | Series |
| MAA150-1C28SGP | 150 | 220(100...264) VAC | 28 VDC | 84х134х33 mm | -50...+85 °C | Series |
| MAA150-1S05SGP | 150 | 220(187...242) VAC | 5 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1S09SGP | 150 | 220(187...242) VAC | 9 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1S12SGP | 150 | 220(187...242) VAC | 12 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1S15SGP | 150 | 220(187...242) VAC | 15 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1S24SGP | 150 | 220(187...242) VAC | 24 VDC | 84х134х33 mm | -50...+85 °C | Series |
| MAA150-1S28SGP | 150 | 220(187...242) VAC | 28 VDC | 84х134х33 mm | -50...+85 °C | Series |
| MAA150-1K05SGP | 150 | 115(81...138) VAC | 5 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1K09SGP | 150 | 115(81...138) VAC | 9 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1K12SGP | 150 | 115(81...138) VAC | 12 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1K15SGP | 150 | 115(81...138) VAC | 15 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1K24SGP | 150 | 115(81...138) VAC | 24 VDC | 84х134х33 mm | -50...+85 °C | Series |
| MAA150-1K28SGP | 150 | 115(81...138) VAC | 28 VDC | 84х134х33 mm | -50...+85 °C | Series |
| MAA150-1C05SDP | 150 | 220(100...264) VAC | 5 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1C09SDP | 150 | 220(100...264) VAC | 9 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1C12SDP | 150 | 220(100...264) VAC | 12 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1C15SDP | 150 | 220(100...264) VAC | 15 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1C24SDP | 150 | 220(100...264) VAC | 24 VDC | 84х134х33 mm | -50...+85 °C | Series |
| MAA150-1C28SDP | 150 | 220(100...264) VAC | 28 VDC | 84х134х33 mm | -50...+85 °C | Series |
| MAA150-1S05SDP | 150 | 220(187...242) VAC | 5 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1S09SDP | 150 | 220(187...242) VAC | 9 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1S12SDP | 150 | 220(187...242) VAC | 12 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1S15SDP | 150 | 220(187...242) VAC | 15 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1S24SDP | 150 | 220(187...242) VAC | 24 VDC | 84х134х33 mm | -50...+85 °C | Series |
| MAA150-1S28SDP | 150 | 220(187...242) VAC | 28 VDC | 84х134х33 mm | -50...+85 °C | Series |
| MAA150-1K05SDP | 150 | 115(81...138) VAC | 5 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1K09SDP | 150 | 115(81...138) VAC | 9 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1K12SDP | 150 | 115(81...138) VAC | 12 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1K15SDP | 150 | 115(81...138) VAC | 15 VDC | 84х134х33 mm | -50...+85 °C | Under development |
| MAA150-1K24SDP | 150 | 115(81...138) VAC | 24 VDC | 84х134х33 mm | -50...+85 °C | Series |
| MAA150-1K28SDP | 150 | 115(81...138) VAC | 28 VDC | 84х134х33 mm | -50...+85 °C | Series |
