MAA Series

MAA800

Dimensions
117x211x41 mm
Power
800 W
Input voltage
220(187...242) VAC; 115(81...138) VAC; 220(100...264) VAC
Output voltage
15 VDC
24 VDC
28 VDC
48 VDC
Efficiency
84-89%
Warranty
2 years
Operation temperature
-40...+85 °C
-50...+85 °C

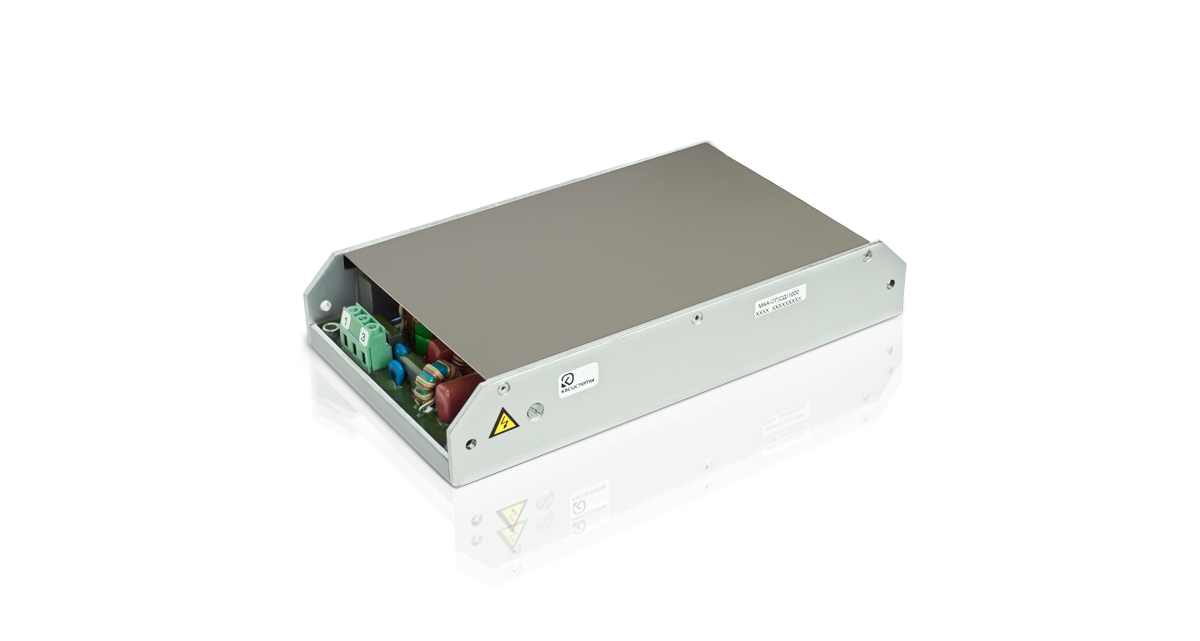

MAA800 power supply units for industrial and special-purpose equipment. Having compact size (211 х 117 х 41 mm) the maximum power output of these units goes up to 800 W.  They are able to operate under a wide case operating temperature range (-50°C...+85°C).

Units have one isolated output channel, remote on/off, and full range of protections (over-current, short-circuit, overheating).

To compensate for voltage drop in conductors of the load there is also a service function of external feedback that allows you to accurately maintain the voltage on the load remote from the converter. The converters of this series employ active alignment of output currents in several units operating in parallel mode for the common load.

Polymer sealing potting ensures reliable protection against external factors and excludes damage to the transformer caused by vibration or contamination by dirt, moisture or salt mist.  Enclosure of the units has u-shaped aluminum base.

The PCB of the unit is protected from mechanical and climatic load by a thin-walled steel cover.

MAA800 model range

Show all
Title Power Input voltage Output Dimensions Work. temp.
MAA800-1S15SGN 800 220(187...242) VAC 15 VDC 117х211х41 mm -40...+85 °C
MAA800-1S24SGN 800 220(187...242) VAC 24 VDC 117х211х41 mm -40...+85 °C
MAA800-1S28SGN 800 220(187...242) VAC 28 VDC 117х211х41 mm -40...+85 °C
MAA800-1S48SGN 800 220(187...242) VAC 48 VDC 117х211х41 mm -40...+85 °C
MAA800-1K15SGN 800 115(81...138) VAC 15 VDC 117х211х41 mm -40...+85 °C
MAA800-1K24SGN 800 115(81...138) VAC 24 VDC 117х211х41 mm -40...+85 °C
MAA800-1K28SGN 800 115(81...138) VAC 28 VDC 117х211х41 mm -40...+85 °C
MAA800-1K48SGN 800 115(81...138) VAC 48 VDC 117х211х41 mm -40...+85 °C
MAA800-1C15SGN 800 220(100...264) VAC 15 VDC 117х211х41 mm -40...+85 °C
MAA800-1C24SGN 800 220(100...264) VAC 24 VDC 117х211х41 mm -40...+85 °C
MAA800-1C28SGN 800 220(100...264) VAC 28 VDC 117х211х41 mm -40...+85 °C
MAA800-1C48SGN 800 220(100...264) VAC 48 VDC 117х211х41 mm -40...+85 °C
MAA800-1S15SDN 800 220(187...242) VAC 15 VDC 117х211х41 mm -40...+85 °C
MAA800-1S24SDN 800 220(187...242) VAC 24 VDC 117х211х41 mm -40...+85 °C
MAA800-1S28SDN 800 220(187...242) VAC 28 VDC 117х211х41 mm -40...+85 °C
MAA800-1S48SDN 800 220(187...242) VAC 48 VDC 117х211х41 mm -40...+85 °C
MAA800-1K15SDN 800 115(81...138) VAC 15 VDC 117х211х41 mm -40...+85 °C
MAA800-1K24SDN 800 115(81...138) VAC 24 VDC 117х211х41 mm -40...+85 °C
MAA800-1K28SDN 800 115(81...138) VAC 28 VDC 117х211х41 mm -40...+85 °C
MAA800-1K48SDN 800 115(81...138) VAC 48 VDC 117х211х41 mm -40...+85 °C
MAA800-1C15SDN 800 220(100...264) VAC 15 VDC 117х211х41 mm -40...+85 °C
MAA800-1C24SDN 800 220(100...264) VAC 24 VDC 117х211х41 mm -40...+85 °C
MAA800-1C28SDN 800 220(100...264) VAC 28 VDC 117х211х41 mm -40...+85 °C
MAA800-1C48SDN 800 220(100...264) VAC 48 VDC 117х211х41 mm -40...+85 °C
MAA800-1S15SGP 800 220(187...242) VAC 15 VDC 117х211х41 mm -50...+85 °C
MAA800-1S24SGP 800 220(187...242) VAC 24 VDC 117х211х41 mm -50...+85 °C
MAA800-1S28SGP 800 220(187...242) VAC 28 VDC 117х211х41 mm -50...+85 °C
MAA800-1S48SGP 800 220(187...242) VAC 48 VDC 117х211х41 mm -50...+85 °C
MAA800-1K15SGP 800 115(81...138) VAC 15 VDC 117х211х41 mm -50...+85 °C
MAA800-1K24SGP 800 115(81...138) VAC 24 VDC 117х211х41 mm -50...+85 °C
MAA800-1K28SGP 800 115(81...138) VAC 28 VDC 117х211х41 mm -50...+85 °C
MAA800-1K48SGP 800 115(81...138) VAC 48 VDC 117х211х41 mm -50...+85 °C
MAA800-1C15SGP 800 220(100...264) VAC 15 VDC 117х211х41 mm -50...+85 °C
MAA800-1C24SGP 800 220(100...264) VAC 24 VDC 117х211х41 mm -50...+85 °C
MAA800-1C28SGP 800 220(100...264) VAC 28 VDC 117х211х41 mm -50...+85 °C
MAA800-1C48SGP 800 220(100...264) VAC 48 VDC 117х211х41 mm -50...+85 °C
MAA800-1S15SDP 800 220(187...242) VAC 15 VDC 117х211х41 mm -50...+85 °C
MAA800-1S24SDP 800 220(187...242) VAC 24 VDC 117х211х41 mm -50...+85 °C
MAA800-1S28SDP 800 220(187...242) VAC 28 VDC 117х211х41 mm -50...+85 °C
MAA800-1S48SDP 800 220(187...242) VAC 48 VDC 117х211х41 mm -50...+85 °C
MAA800-1K15SDP 800 115(81...138) VAC 15 VDC 117х211х41 mm -50...+85 °C
MAA800-1K24SDP 800 115(81...138) VAC 24 VDC 117х211х41 mm -50...+85 °C
MAA800-1K28SDP 800 115(81...138) VAC 28 VDC 117х211х41 mm -50...+85 °C
MAA800-1K48SDP 800 115(81...138) VAC 48 VDC 117х211х41 mm -50...+85 °C
MAA800-1C15SDP 800 220(100...264) VAC 15 VDC 117х211х41 mm -50...+85 °C
MAA800-1C24SDP 800 220(100...264) VAC 24 VDC 117х211х41 mm -50...+85 °C
MAA800-1C28SDP 800 220(100...264) VAC 28 VDC 117х211х41 mm -50...+85 °C
MAA800-1C48SDP 800 220(100...264) VAC 48 VDC 117х211х41 mm -50...+85 °C

Accessories

Heatsinks for MAA units

Ribbed aluminum heatsinks of RO series.
