MAA / KWant Series
KWant30
- Dimensions
- 51x101x20 mm
- Power
- 30 W
- Input voltage
- 220(100...264) VAC
- Output voltage
-
5 VDC
12 VDC
15 VDC
24 VDC
28 VDC
- Efficiency
- 91%
- Warranty
- 2 years
- Operation temperature
-
-40...+85 °C
-50...+85 °C

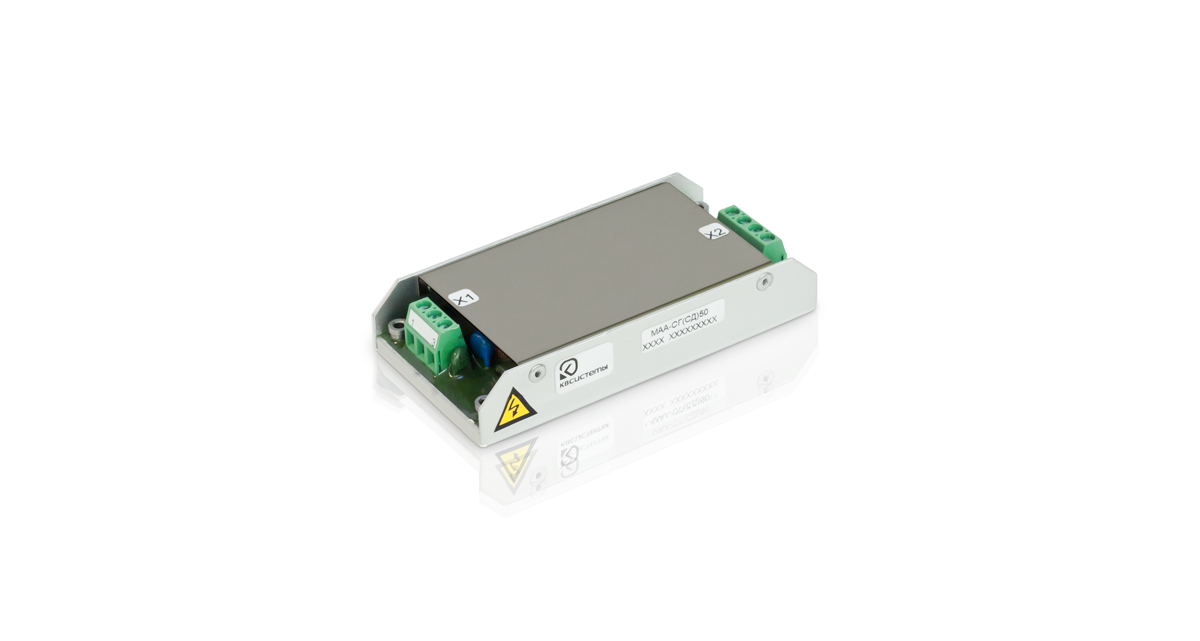

KWant30 power supply units for industrial and special-purpose equipment. Having compact size (101 x 51 x 20 mm) the maximum power output of these units goes up to 30 W.
They are able to operate under a wide case operating temperature range (-50°C...+85°C). Units have one isolated output channel, full range of protections (over-current, short-circuit, overheating), can be used in parallel and series mode.
Polymer sealing potting ensures reliable protection against external factors and excludes damage to the transformer caused by vibration or contamination by dirt, moisture or salt mist.
Enclosure of the units has u-shaped aluminum base. The PCB of the unit is protected from mechanical and climatic load by a thin-walled steel cover.
_-_1.png)
KWant30 model range
Show all
| Title | Power | Input Voltage | Output | Dimensions | Work. Temp. | Status |
|---|---|---|---|---|---|---|
| KWant30-1C05SGN | 30 | 220(100...264) VAC | 5 VDC | 51х101х20 mm | -40...+85 °C | Series |
| KWant30-1C12SGN | 30 | 220(100...264) VAC | 12 VDC | 51х101х20 mm | -40...+85 °C | Series |
| KWant30-1C15SGN | 30 | 220(100...264) VAC | 15 VDC | 51х101х20 mm | -40...+85 °C | Series |
| KWant30-1C24SGN | 30 | 220(100...264) VAC | 24 VDC | 51х101х20 mm | -40...+85 °C | Series |
| KWant30-1C28SGN | 30 | 220(100...264) VAC | 28 VDC | 51х101х20 mm | -40...+85 °C | Series |
| KWant30-1C05SDN | 30 | 220(100...264) VAC | 5 VDC | 51х101х20 mm | -40...+85 °C | Series |
| KWant30-1C12SDN | 30 | 220(100...264) VAC | 12 VDC | 51х101х20 mm | -40...+85 °C | Series |
| KWant30-1C15SDN | 30 | 220(100...264) VAC | 15 VDC | 51х101х20 mm | -40...+85 °C | Series |
| KWant30-1C24SDN | 30 | 220(100...264) VAC | 24 VDC | 51х101х20 mm | -40...+85 °C | Series |
| KWant30-1C28SDN | 30 | 220(100...264) VAC | 28 VDC | 51х101х20 mm | -40...+85 °C | Series |
| KWant30-1C05SGP | 30 | 220(100...264) VAC | 5 VDC | 51х101х20 mm | -50...+85 °C | Series |
| KWant30-1C12SGP | 30 | 220(100...264) VAC | 12 VDC | 51х101х20 mm | -50...+85 °C | Series |
| KWant30-1C15SGP | 30 | 220(100...264) VAC | 15 VDC | 51х101х20 mm | -50...+85 °C | Series |
| KWant30-1C24SGP | 30 | 220(100...264) VAC | 24 VDC | 51х101х20 mm | -50...+85 °C | Series |
| KWant30-1C28SGP | 30 | 220(100...264) VAC | 28 VDC | 51х101х20 mm | -50...+85 °C | Series |
| KWant30-1C05SDP | 30 | 220(100...264) VAC | 5 VDC | 51х101х20 mm | -50...+85 °C | Series |
| KWant30-1C12SDP | 30 | 220(100...264) VAC | 12 VDC | 51х101х20 mm | -50...+85 °C | Series |
| KWant30-1C15SDP | 30 | 220(100...264) VAC | 15 VDC | 51х101х20 mm | -50...+85 °C | Series |
| KWant30-1C24SDP | 30 | 220(100...264) VAC | 24 VDC | 51х101х20 mm | -50...+85 °C | Series |
| KWant30-1C28SDP | 30 | 220(100...264) VAC | 28 VDC | 51х101х20 mm | -50...+85 °C | Series |
