AC/DC converters

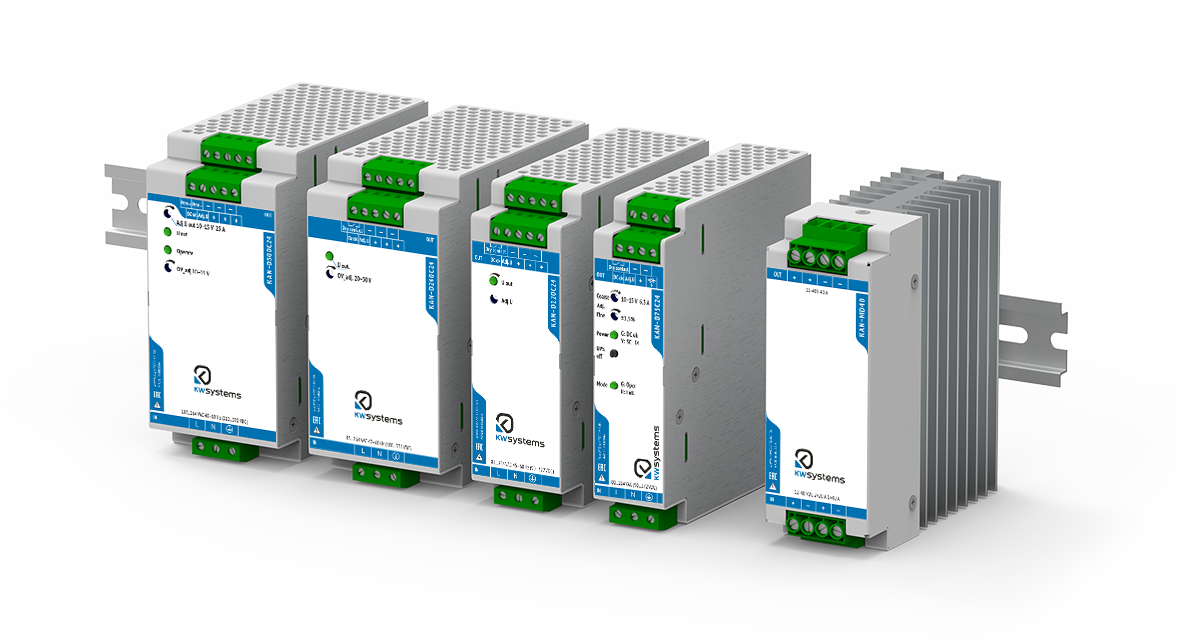

KAN-D Series (AC/DC converters)

AC/DC-converters for DIN-rail mounting.  Convection cooling for all models of the series.  Able to operate under high humidity and at -55°C! These units have high efficiency rate (up to 90%) and EMC (Class B, EN55022 (CISPR22)). Wide range of power (75 to 600 W), input voltage (80-264 V), compact size, active PFC, great price and high quality from a Russian manufacturer.
Can be used in:
  • Oil-and-gas industry
  • Telecommunication
  • Mining industry
  • Industrial power engineering and automation
  • Security
  • Special application


Models

Title Datasheet Power Dimensions Input range Output voltage Efficiency
KAN-D150 150 W
42x131x132 mm
220(80...264) VAC
12 VDC
24 VDC
48 VDC
92-93%
KAN-D300 300 W
45x131x132 mm
220(80...264) VAC
12 VDC
24 VDC
48 VDC
90%
KAN-D600 600 W
90x131x132 mm
220(80...264) VAC
12 VDC
24 VDC
48 VDC
90%
KAN-D75 NEW 75 W
33x134x131 mm
220(80...264) VAC
12 VDC
24 VDC
48 VDC
93-94%
UPS-D 24-10X 240 W
45x131x122 mm
24(18...30) VDC
24 VDC
98%

Accessories

Clamp for KAN50, KDN50

Clamp for mounting units on DIN-rail.
Article number for ordering:  60305 + adapter plate 210166.

Adapter plate for KAN50, KDN50

Adapter plate for attaching a clamp. Used instead of the mounting bracket.
210166 + clamp 60305

Clamp for KAN-D150

Clamp for mounting units on DIN-rail.

Article number for ordering:  31017 + adapter plate 31016.

Clamp for KAN25, KAN50 and KAN150

Clamp for mounting units on DIN-rail.
Article number for ordering:  11438 + mounting bracket 31012, 31013 or adapter plate 31016.

Adapter plate for KAN50, KAN150

Adapter plate for attaching a clamp. Used instead of the mounting bracket. 31016 + clamp 11438 or 31017

Mounting bracket for KAN150

Mounting bracket for attaching a clamp.

Article number for ordering: 31013 + clamp 11438.

Mounting bracket for KAN25, KAN50, KDN25, KDN50

Mounting bracket for attaching a clamp.

Article number for ordering: 31012 + clamp 11438
