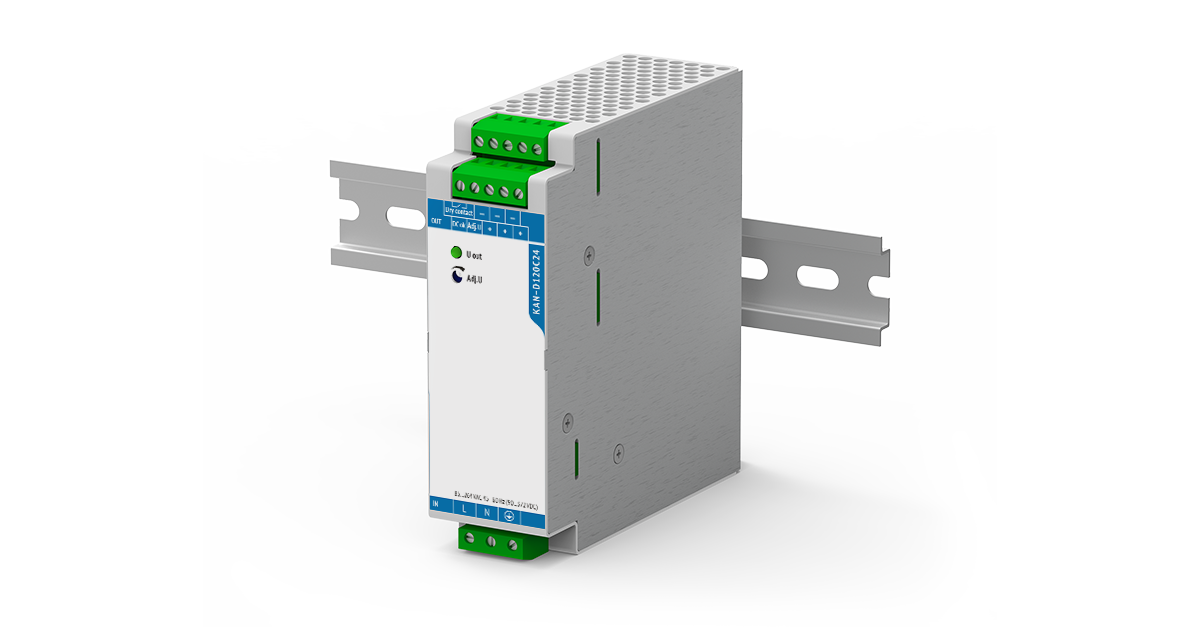

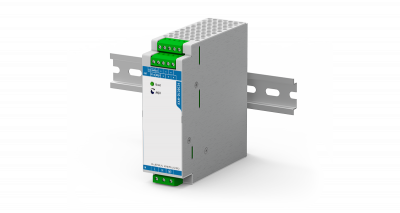

KAN-D Series

KAN-D150

Dimensions
42x131x132 mm
Power
150 W
Input voltage
220(80...264) VAC
Output voltage
12 VDC
24 VDC
48 VDC
Efficiency
92-93%
Warranty
2 years
Operation temperature
-40...+70 °C
-50...+70 °C
Power 150 W, input voltage from 80 to 264 VAC (112...372 VDC), output voltage 12; 24; 48 V with efficiency 92-93% and output current up to 30A

KAN-D150 model range

Show all
Title Power Input voltage Output Dimensions Work. temp.
KAN-D150C12N 150 220(80...264) VAC 12 VDC 42х131х132 mm -40...+70 °C
KAN-D150C12P 150 220(80...264) VAC 12 VDC 42х131х132 mm -50...+70 °C
KAN-D150C24N 150 220(80...264) VAC 24 VDC 42х131х132 mm -40...+70 °C
KAN-D150C24P 150 220(80...264) VAC 24 VDC 42х131х132 mm -50...+70 °C
KAN-D150C48N 150 220(80...264) VAC 48 VDC 42х131х132 mm -40...+70 °C
KAN-D150C48P 150 220(80...264) VAC 48 VDC 42х131х132 mm -50...+70 °C

Accessories

Clamp for KAN-D150

Clamp for mounting units on DIN-rail.

Article number for ordering:  31017 + adapter plate 31016.

Clamp for KAN25, KAN50 and KAN150

Clamp for mounting units on DIN-rail.
Article number for ordering:  11438 + mounting bracket 31012, 31013 or adapter plate 31016.

Adapter plate for KAN50, KAN150

Adapter plate for attaching a clamp. Used instead of the mounting bracket. 31016 + clamp 11438 or 31017

Mounting bracket for KAN150

Mounting bracket for attaching a clamp.

Article number for ordering: 31013 + clamp 11438.
