KAN-D Series

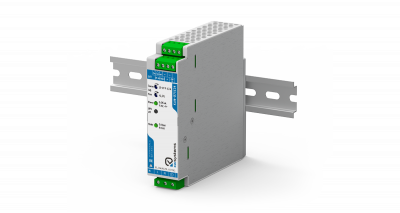

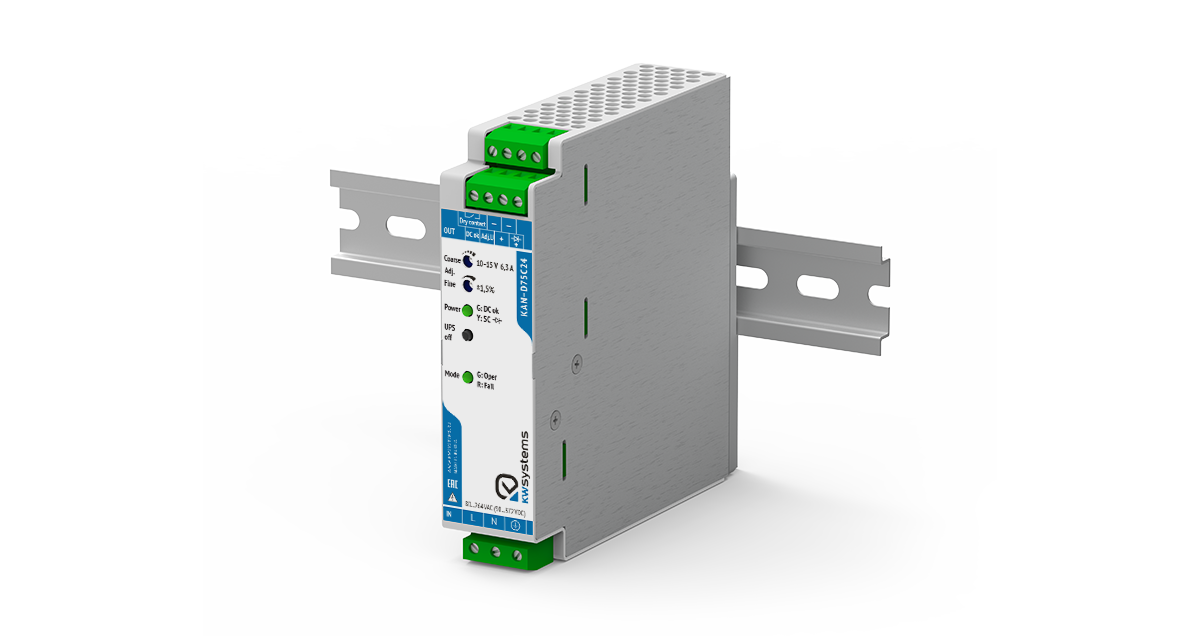

KAN-D75
- Dimensions
- 33x134x131 mm
- Power
- 75 W
- Input voltage
- 220(80...264) VAC
- Output voltage
-
12 VDC
24 VDC
48 VDC
- Efficiency
- 93-94%
- Warranty
- 2 years
- Operation temperature
-
-25...+70 °C
-50...+70 °C
Key Features:
- Power 75 W,
- input voltage from 80 to 264 VAC (112...372 VDC),
- output voltage 12; 24; 48 V with efficiency 93-94% and output current up to 6.3 A
KAN-D75 model range
Show all
| Title | Power | Input Voltage | Output | Dimensions | Work. Temp. | Status |
|---|---|---|---|---|---|---|
| KAN-D75C12N NEW | 75 | 220(80...264) VAC | 12 VDC | 33х134х131 mm | -25...+70 °C | Series |
| KAN-D75C12P NEW | 75 | 220(80...264) VAC | 12 VDC | 33х134х131 mm | -50...+70 °C | Series |
| KAN-D75C24N NEW | 75 | 220(80...264) VAC | 24 VDC | 33х134х131 mm | -25...+70 °C | Series |
| KAN-D75C24P NEW | 75 | 220(80...264) VAC | 24 VDC | 33х134х131 mm | -50...+70 °C | Series |
| KAN-D75C48N NEW | 75 | 220(80...264) VAC | 48 VDC | 33х134х131 mm | -25...+70 °C | Series |
| KAN-D75C48P NEW | 75 | 220(80...264) VAC | 48 VDC | 33х134х131 mm | -50...+70 °C | Series |
