KAN-D Series

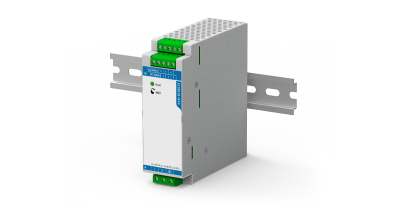

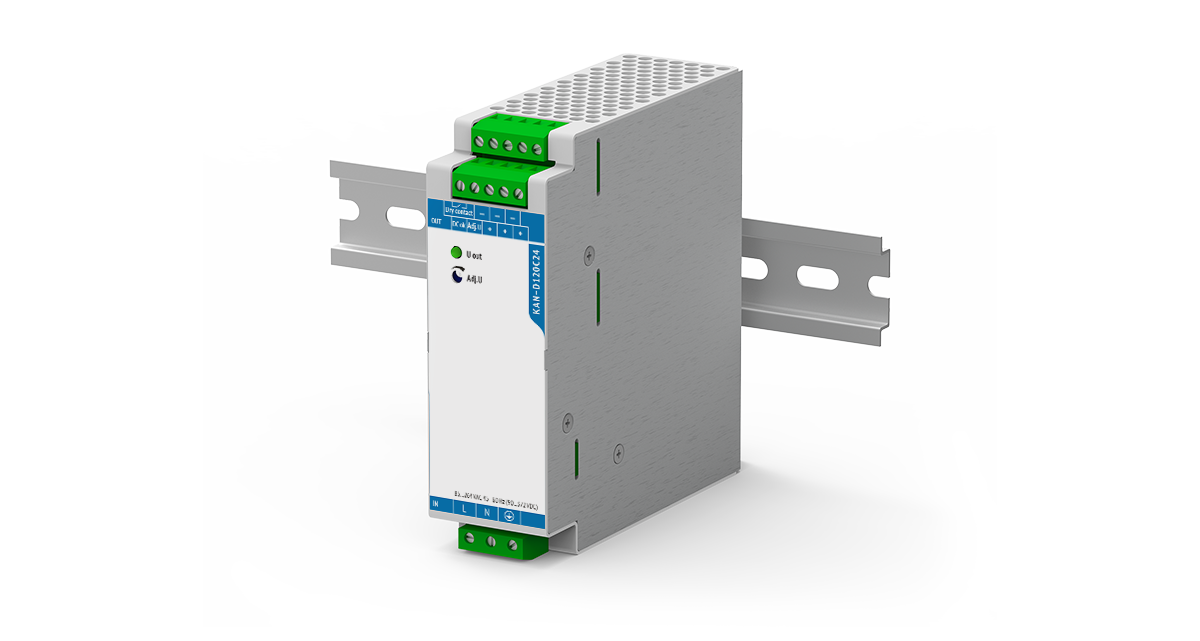

KAN-D120
- Dimensions
- 42x131x132 mm
- Power
- 120 W
- Input voltage
- 220(80...264) VAC
- Output voltage
-
24 VDC
- Efficiency
- 92%
- Warranty
- 2 years
- Operation temperature
- -25...+70 °C
Key Features:
- Power 120 W
- input voltage from 80 to 264 VAC (112...372 VDC)
- output voltage 12; 24; 48 V with efficiency 92-93% and output current up to 30A
KAN-D120 model range
Show all
| Title | Power | Input Voltage | Output | Dimensions | Work. Temp. | Status |
|---|---|---|---|---|---|---|
| KAN-D120C24N | 120 | 220(80...264) VAC | 24 VDC | 42х131х132 mm | -25...+70 °C | Series |
