AC/DC converters

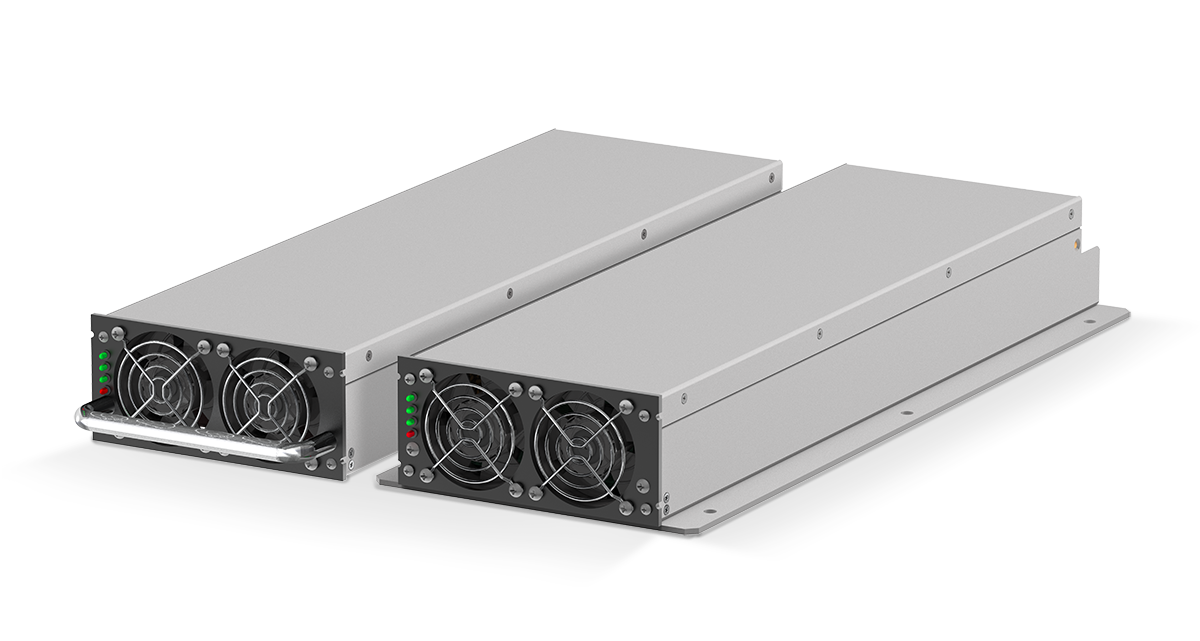

KWadr Series (AC/DC converters)
Reliable universal AC/DC converters, designed to replace foreign analogues. They are able to operate at - 40ºC and in high humidity. These units have high efficiency (90-95%) and EMC (Class B, EN55022 (CISPR22)).All units are equipped with built-in active PFC, ensuring the most effective use of the input network.
Can be used in:
- Oil-and-gas industry
- Telecommunication
- Mining industry
- Industrial power engineering and automation
- Security
- Special application
- High-power battery charges
.png)
Series documentation
Models
| Title | Datasheet | Power | Dimensions | Input range | Output voltage | Efficiency |
|---|---|---|---|---|---|---|
| KWadr5000 |
5000 W |
140x475x63 mm |
220(90...280) VAC |
30 VDC 60 VDC 110 VDC 250 VDC 300 VDC 350 VDC |
90-95% | |
| KWadr5000T |
5000 W |
140x475x63 mm 180x475x63 mm |
380(350...450) VAC |
30 VDC 60 VDC 110 VDC 140 VDC 250 VDC 300 VDC 350 VDC |
92-95% |
