KWadr Series

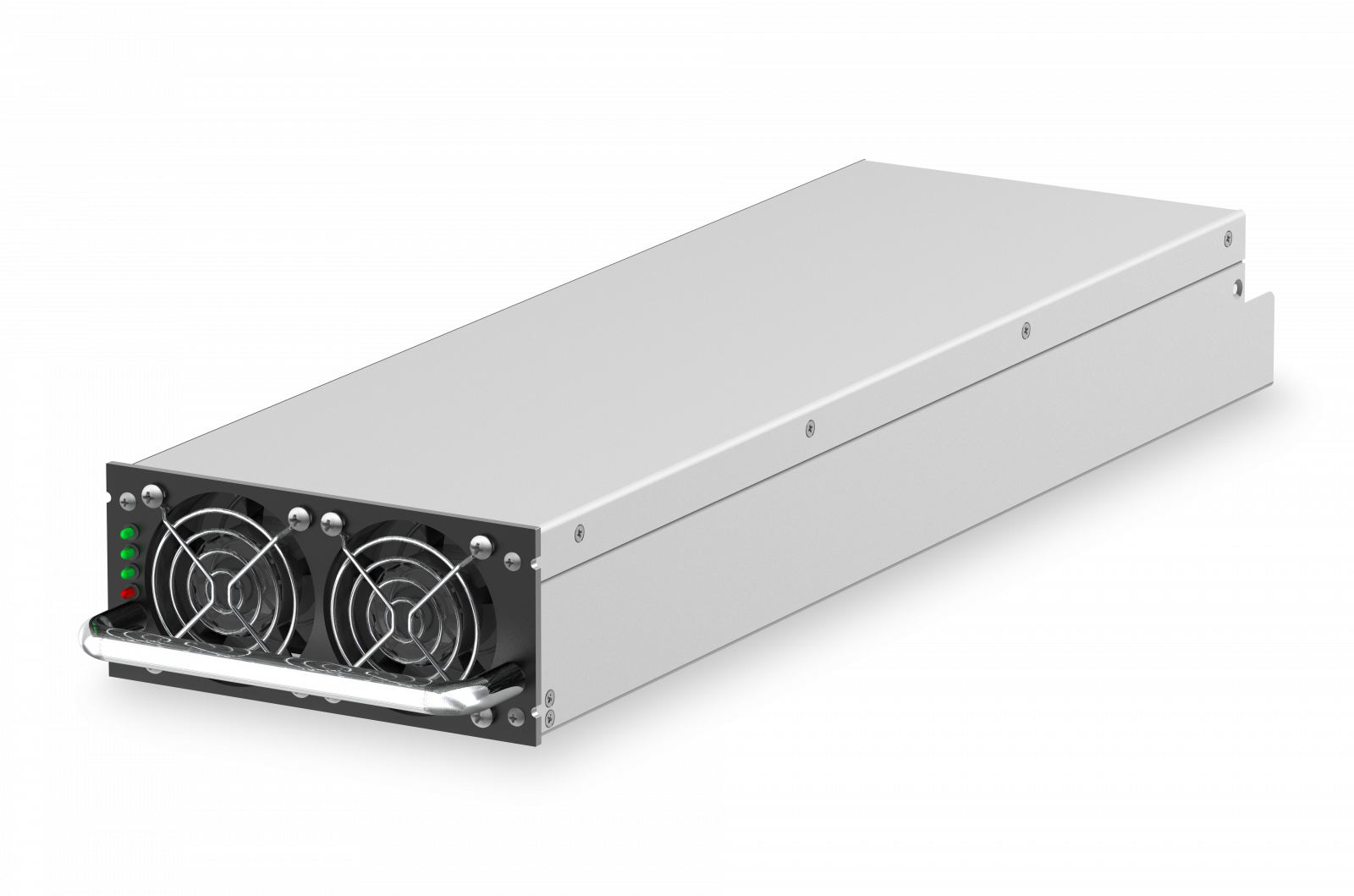

KWadr5000
- Dimensions
- 140x475x63 mm
- Power
- 5000 W
- Input voltage
- 220(90...280) VAC
- Output voltage
-
30 VDC
60 VDC
110 VDC
250 VDC
300 VDC
350 VDC
- Efficiency
- 90-95%
- Warranty
- 2 years
- Operation temperature
- -20...+50 °C
Power 5000 W, input voltage from 90 to 280 VAC, output voltage 30; 60; 110; 250; 300; 350 V with efficiency 90-95% and output current up to 166A
KWadr5000 model range
Show all
| Title | Power | Input Voltage | Output | Dimensions | Work. Temp. | Status |
|---|---|---|---|---|---|---|
| KWadr5000C30 | 5000 | 220(90...280) VAC | 30 VDC | 140х475х63 mm | -20...+50 °C | Series |
| KWadr5000C60 | 5000 | 220(90...280) VAC | 60 VDC | 140х475х63 mm | -20...+50 °C | Series |
| KWadr5000C110 | 5000 | 220(90...280) VAC | 110 VDC | 140х475х63 mm | -20...+50 °C | Series |
| KWadr5000C250 | 5000 | 220(90...280) VAC | 250 VDC | 140х475х63 mm | -20...+50 °C | Series |
| KWadr5000C300 | 5000 | 220(90...280) VAC | 300 VDC | 140х475х63 mm | -20...+50 °C | Series |
| KWadr5000C350 | 5000 | 220(90...280) VAC | 350 VDC | 140х475х63 mm | -20...+50 °C |
