KWadr Series

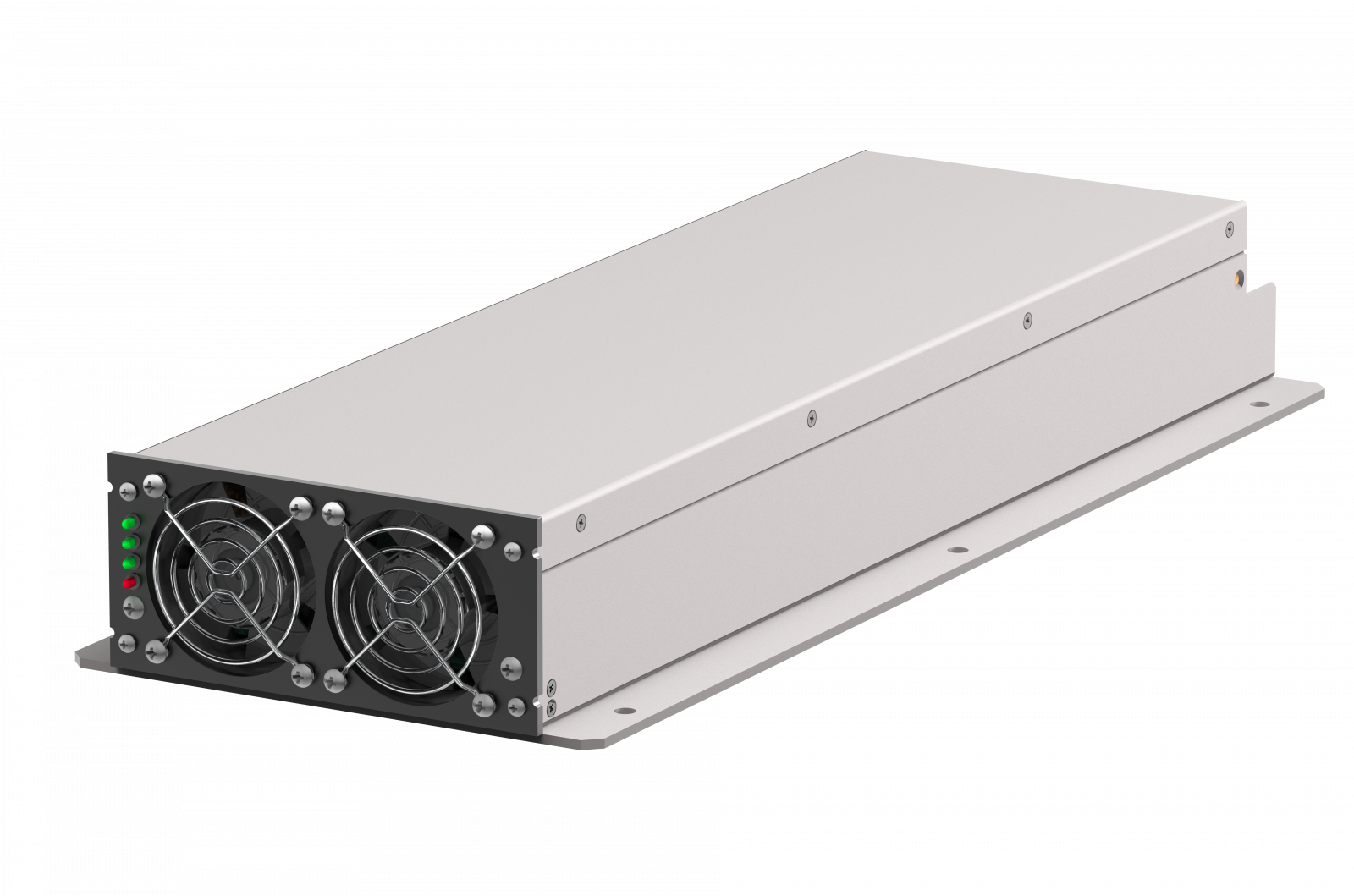

KWadr5000T
- Dimensions
-
140x475x63 mm
180x475x63 mm
- Power
- 5000 W
- Input voltage
- 380(350...450) VAC
- Output voltage
-
30 VDC
60 VDC
110 VDC
140 VDC
250 VDC
300 VDC
350 VDC
- Efficiency
- 92-95%
- Warranty
- 2 years
- Operation temperature
- -20...+50 °C
Power 5000 W, input voltage from 350 to 450 VAC (3p w/o n), output voltage 30; 60; 110; 250; 300; 350 V with efficiency 90-95% and output current up to 166A
Model documentation
Download allKWadr5000T model range
Show all
Title
|
Power
|
Input Voltage
|
Output
|
Dimensions
|
Work. Temp.
|
Status
|
|---|---|---|---|---|---|---|
Title
|
Power
|
Input Voltage
|
Output
|
Dimensions
|
Work. Temp.
|
Status
|
|---|---|---|---|---|---|---|
| KWadr5000T30 | 5000 | 380(350...450) VAC | 30 VDC | 140х475х63 mm | -20...+50 °C | |
| KWadr5000T60 | 5000 | 380(350...450) VAC | 60 VDC | 140х475х63 mm | -20...+50 °C | Series |
| KWadr5000T110 | 5000 | 380(350...450) VAC | 110 VDC | 140х475х63 mm | -20...+50 °C | Series |
| KWadr5000T140 | 5000 | 380(350...450) VAC | 140 VDC | 140х475х63 mm | -20...+50 °C | Series |
| KWadr5000T250 | 5000 | 380(350...450) VAC | 250 VDC | 180х475х63 mm | -20...+50 °C | Series |
| KWadr5000T300 | 5000 | 380(350...450) VAC | 300 VDC | 180х475х63 mm | -20...+50 °C | Series |
| KWadr5000T350 | 5000 | 380(350...450) VAC | 350 VDC | 180х475х63 mm | -20...+50 °C |
