KWasar / KWark Series

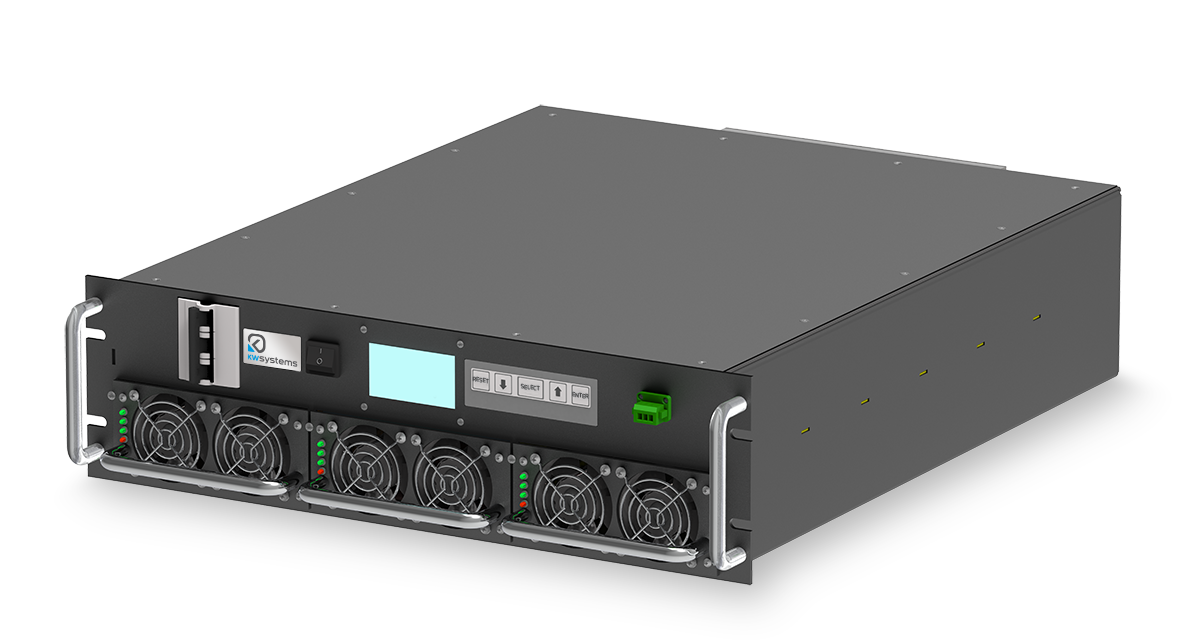

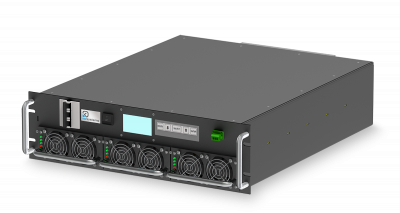

KWasar15
- Dimensions
- 483x566x133 mm
- Power
- 15000 W
- Input voltage
- 220(90...280) VAC; 380(323...418) VAC
- Output voltage
-
30 VDC Under Development
60 VDC Under Development
110 VDC Under Development
140 VDC Under Development
250 VDC Under Development
250 VDC
300 VDC Under Development
300 VDC
350 VDC Under Development
- Efficiency
- 93-95%
- Warranty
- 2 years
- Operation temperature
- -20...+50 °C
Power up to 15 kW, voltage input ~ 323 ... 418 V (3-phase network with neutral conductor), efficiency 93-95%, output voltage up to 300 V, output current up to 500 A
KWasar15 model range
Show all
| Title | Power | Input Voltage | Output | Dimensions | Work. Temp. | Status |
|---|---|---|---|---|---|---|
| KWasar15C30 | 15000 | 220(90...280) VAC | 30 VDC | 483х566х133 mm | -20...+50 °C | Under Development |
| KWasar15T30 | 15000 | 380(323...418) VAC | 30 VDC | 483х566х133 mm | -20...+50 °C | Under Development |
| KWasar15C60 | 15000 | 220(90...280) VAC | 60 VDC | 483х566х133 mm | -20...+50 °C | Under Development |
| KWasar15T60 | 15000 | 380(323...418) VAC | 60 VDC | 483х566х133 mm | -20...+50 °C | Under Development |
| KWasar15C110 | 15000 | 220(90...280) VAC | 110 VDC | 483х566х133 mm | -20...+50 °C | Under Development |
| KWasar15T110 | 15000 | 380(323...418) VAC | 110 VDC | 483х566х133 mm | -20...+50 °C | Under Development |
| KWasar15C140 | 15000 | 220(90...280) VAC | 140 VDC | 483х566х133 mm | -20...+50 °C | Under Development |
| KWasar15T140 | 15000 | 380(323...418) VAC | 140 VDC | 483х566х133 mm | -20...+50 °C | Under Development |
| KWasar15C250 | 15000 | 220(90...280) VAC | 250 VDC | 483х566х133 mm | -20...+50 °C | Under Development |
| KWasar15T250 | 15000 | 380(323...418) VAC | 250 VDC | 483х566х133 mm | -20...+50 °C | Series |
| KWasar15C300 | 15000 | 220(90...280) VAC | 300 VDC | 483х566х133 mm | -20...+50 °C | Under Development |
| KWasar15T300 | 15000 | 380(323...418) VAC | 300 VDC | 483х566х133 mm | -20...+50 °C | Series |
| KWasar15C350 | 15000 | 220(90...280) VAC | 350 VDC | 483х566х133 mm | -20...+50 °C | Under Development |
| KWasar15T350 | 15000 | 380(323...418) VAC | 350 VDC | 483х566х133 mm | -20...+50 °C | Under Development |
